UPS

Line Interactive UPS 500VA-3000VA

FEATURE
  • Compact size
  • Excellent microprocessor control guarantees high reliability
  • Boost and buck AVR for voltage stabilization
  • Off-mode charging
  • Cold start function


SPECIFICATION


          MODEL

A-500

A-600

A-800

A-1000A-1200A-1500A-2000A-3000

Capacity

500VA/300W

600VA/360W800VA/480W1000VA/600W1200VA/720W1500VA/900W2000VA/1200W3000VA/1800W

INPUT

Voltage

110/120VAC or 220/230/240 VAC

Voltage Range81-145VAC or 145-275VAC

Frequency Range

50Hz or 60Hz(auto-sensing)

OUTPUT

Output Voltage

110/120VAC or 220/230/240 VAC

AC Voltage Regulation(Batt. Mode)±10%
Frequency Range(Batt. Mode)50HZ or 60HZ±10%
Transfer TimeTypical 6-10ms
Waveform(Batt. Mode)Simulated sine wave

BATTERY

Battery Type & Number

12V/4AH*1

12V/7.5AH*112V/9AH*112V/7.5AH*212V/7.5AH*212V/9AH*212V/7.5AH*412V/9AH*4

Typical Recharge Time

8 hours recover to 90% capacity

PROTECTION

Full Protection

Short Circuit, Over load, Battery Low Voltage protection and off-mode charging

RS232 or USB communication port

Optional

RJ11/RJ45 portOptional
INDICATORS
line ModeGreen lighting
Battery Mode

Red lighting

Battery Charge Mode
Yellow lighting

ALARM

Battery Mode

Sounding every 10 seconds

Low Battery
Sounding every second
OverloadSounding every 0.5 second
Fault
Continuously sounding

ENVIRONMENT

Humidity0-95% RH @ 0-40℃(no condensing)
Noise Level
Less than 40dB
PHYSICAL
Weight(Net Weight)4Kg5Kg6.2Kg9Kg9.7Kg11.5kg17Kg21Kg

Dimension W*D*H

(mm for UPS)

365*90*137

307*90*137320*100*150365*138*165360*190*330

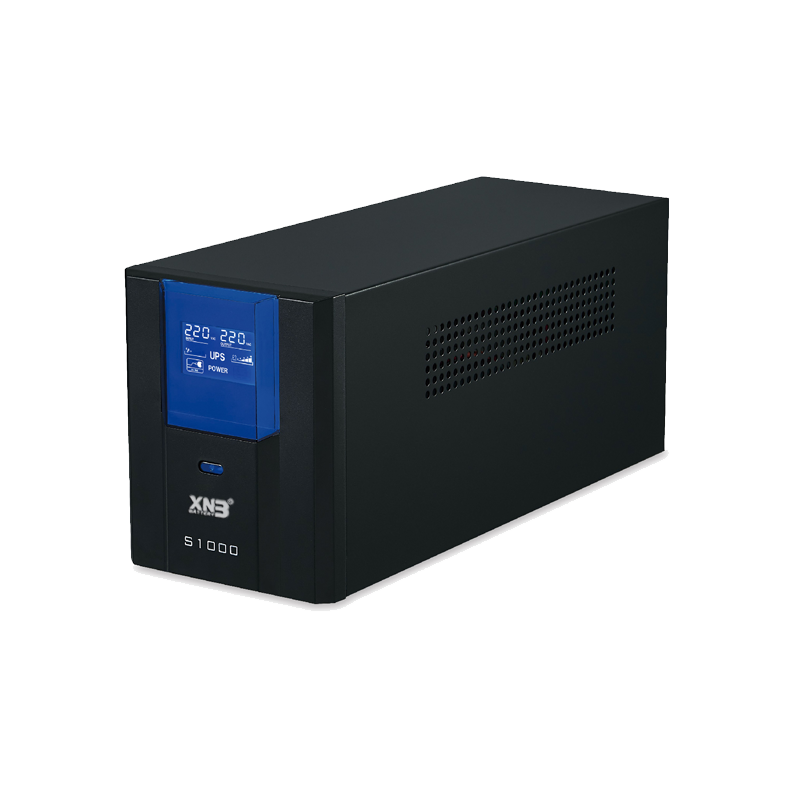

Line Interactive UPS 500VA-3000VA
