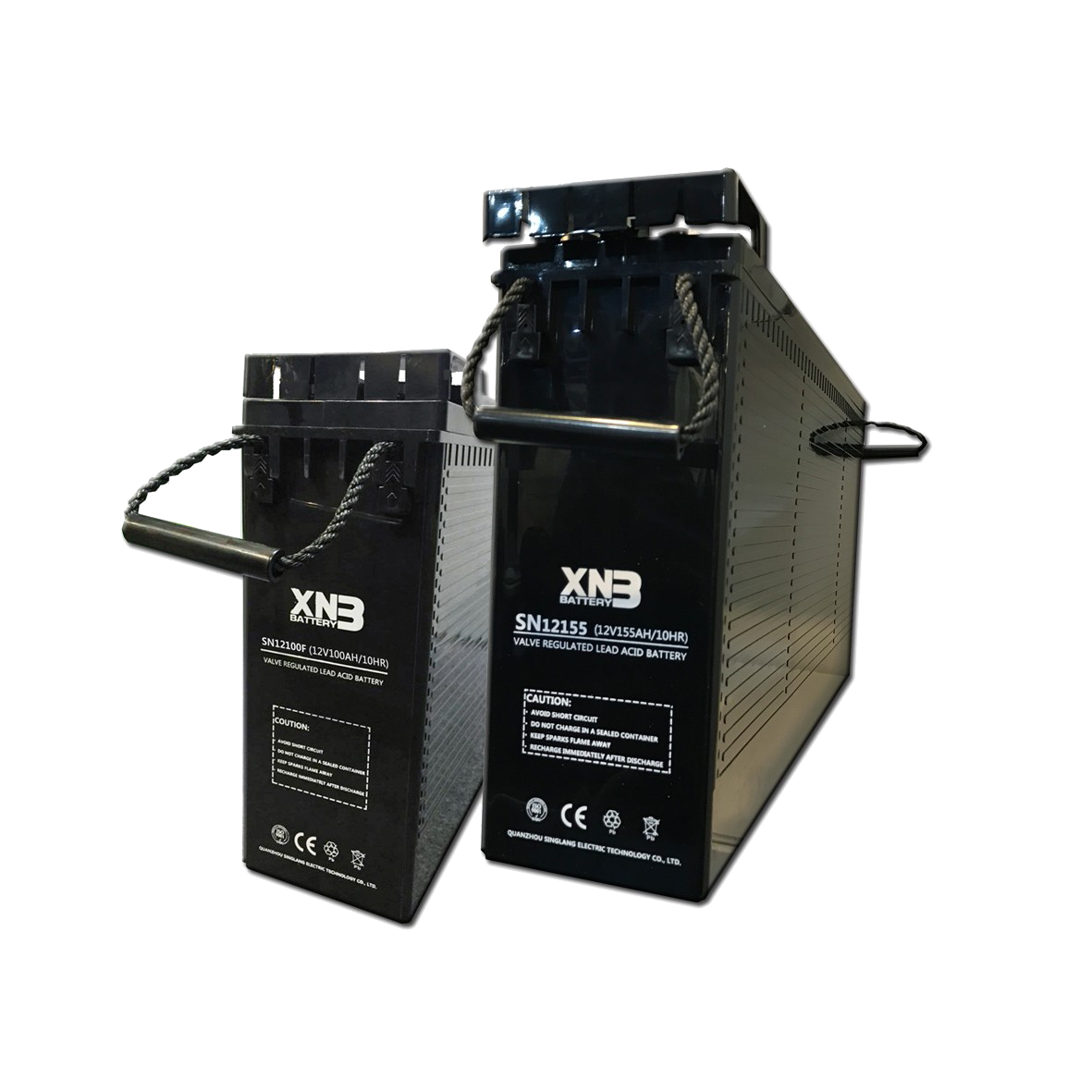

FRONT TERMINAL BATTERY
Front Terminal Series batteries are mainly used in Telecom. Front terminals make installation and maintenance easier.
| Applications | Features |
1. Telecommunications systems & power utility 2. Solar power stations & outdoor applications 3. Railway & marine systems 4. UPS 5. Power system of special network or local area network , etc | 1. Front terminals make the installation , maintenance and supervision easier 2. Shield designs protect terminals from short circuit and show good appearance 3. Unigue vent valve design : reduce water losing and prevent air /spark going inside 4. ABS material : increase the strength of battery container 5. Thick plates , special plate making process for a long service life |
| Specifications |
Model No. | Voltage | Capacity | Approx. Dimensions (±2mm) | Approx. Weight | Quantity/CTN | |||
(V) | (Ah) | Length | Wide | Height | Total Height | |||
SN12050F | 12 | 50 | 291 | 106 | 223 | 230 | 17.00 | 1 |
SN12072F | 12 | 72 | 562 | 115 | 187 | 194 | 19.50 | 1 |
SN12080F | 12 | 80 | 562 | 115 | 187 | 194 | 26.00 | 1 |
SN12100F-A | 12 | 100 | 394 | 110 | 286 | 286 | 30.00 | 1 |
SN12100F-B | 12 | 100 | 507 | 110 | 223 | 238 | 34.00 | 1 |
SN12105F | 12 | 105 | 507 | 110 | 223 | 238 | 32.00 | 1 |
SN12110F | 12 | 110 | 394 | 110 | 286 | 286 | 33.00 | 1 |
SN12125F | 12 | 125 | 545 | 105 | 315 | 315 | 41.20 | 1 |
SN12150F | 12 | 150 | 528 | 125 | 310 | 310 | 50.00 | 1 |
| SN12170F | 12 | 170 | 561 | 125 | 316 | 316 | 51.00 | 1 |
SN12180F | 12 | 180 | 561 | 125 | 316 | 316 | 53.80 | 1 |
