UPS

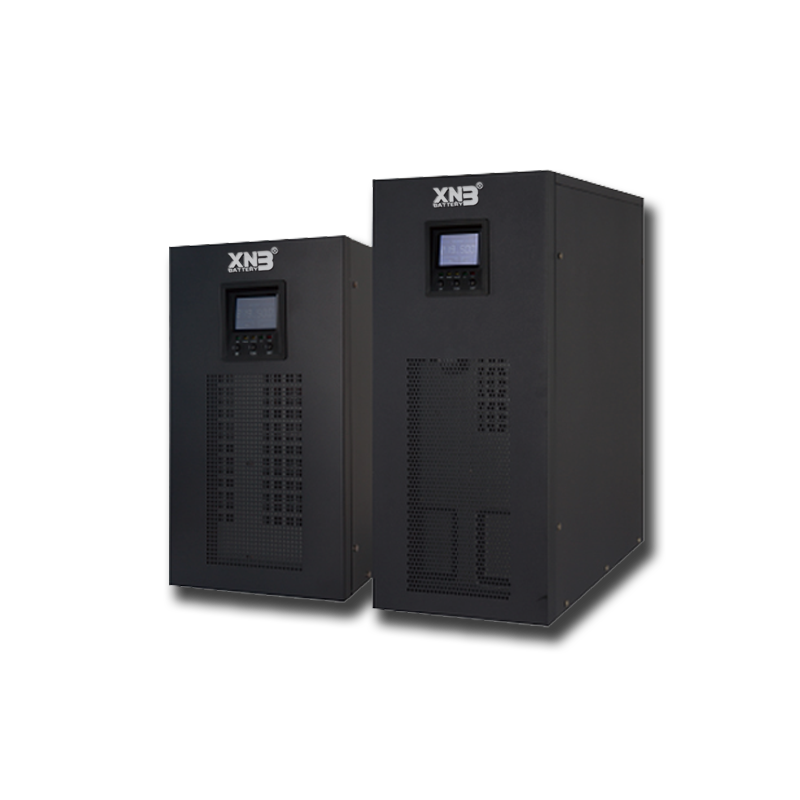

HT6-20KVA High frequency series

6KVA-10KVA 1/1 phase
10KVA-20KVA 3/1 phase
PF0.9
High frequency
double conversion
Online

FEATURE
  • High frequency and double conversion online technology
  • Fully digitized microprocessor control
  • Wide input voltage range
  • LCD display
  • UPS start up without battery (optional)
  • Cold start
  • Advanced battery management
  • Automatic battery charging in UPS off mode
  • Lightning and surge protection (optional)
  • Short circuit and overload protection
  • Fan speed adjusted by load automatically
  • Network/fax/modem surge protection(optional)
  • Optional extension battery pack
  • Battery vltage display
  • Load capacity display
  • EMI/RFI noise filter
  • Smart RS232 communication with monitoring software
  • Optional SNMP card slot
  • Input L and N reversed alarm function
  • EPO function(optional)


SPECIFACATION


                   MODEL

             HT6K

            HT10K

        HT31 10K

     HT31 15K          HT31 20K

Capacity

6000VA

10000VA10000VA15000VA20000VA
N+X Parallel(up to 3 pca)

INPUT

Voltage

120VAC-280VAC

304VAC-475VAC

Frequency

45-55Hz(55-65Hz) Auto Sensing

Input Power Factor
>99%

OUTPUT

Voltage

220VAC±1%

Frequency50/60Hz±0.2%(battery mode)
Distortion THDNon-linear Load THD<5%, Linear Load THD<3%
Overload105%-125% 1min, 125%-150% 30s>150% 0.5s
Crest Factor
>3.1

Power Factor

0.8/0.9

Efficiency

>91%

>0.90%
Dynamic ResponseFull load±3%
Wave Form
Sine Wave

BATTERY

Type

Valve Controlled Sealed Lead-acid Battery

DC Voltage

192VDC

Quantity for Battery
12V/7Ah*16pcs

Charging current

2A/4A 8A(optional)

TRANSFER TIME

AC Fault

0ms

UPS Fault

0ms

PROTECTION

Short Circuit

Shut Off Inverter and Bypass Output at The Same Time

Over Temperatrue

Transfer to Bypass Output Automaticly

DISPLAY
LCDInput Voltage、Output Voltage、Current、Frequency、Battery Voltage& Charging Current、Fault、Alarm

LED

UPS Status

ALARM

Battery Low Voltage

Alarm Every Second

AC Fault
Alarm Every 4 Seconds
UPS OverloadAlarm Continuely
UPS Fault
Alarm Continuely

COMMUNICATION INTERFACE

RS232 (SNMP&USB Optional)

ENVIRONMENT

Temperature0°C-40°C
Humidity≤90%
Noise(within 1 meter)
<50dB<55dB
PHYSICAL
Weight(Net Weight)18Kg/57Kg20Kg/67.5Kg27Kg/80Kg35kg35Kg
Dimension W*D*H(mm for UPS)
240*500*440(L)/248*500*565248*500*565





HT6-20KVA High frequency series
6KVA-10KVA 1/1 phase
10KVA-20KVA 3/1 phase
PF0.9
High frequency
double conversion
Online
