UPS

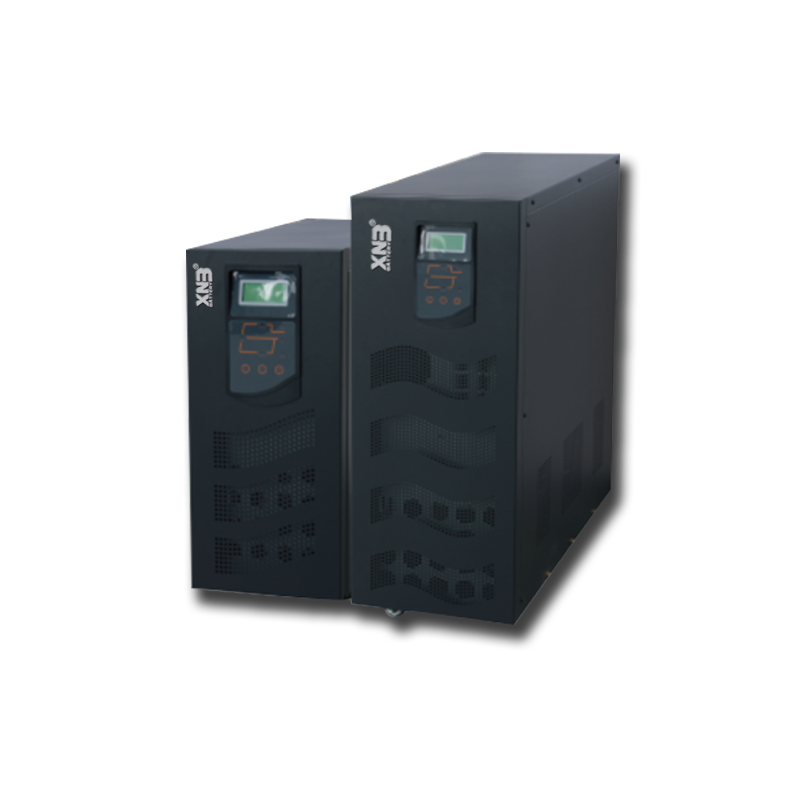

LX2-2OKVA transformar based series

2KVA-20KVA
1/1 phase
PF0.8
Transformar based
double conversion
online

FEATURE
  • Pure sine wave output
  • Wide input vltage
  • Friendly interface design ofLCD
  • Cold start
  • Isolation transforme
  • Microprocessor control, self-check, battery check by itself
  • Online static bypass, strong protection for overload and UPS fault
  • RS232 & SNMP for optional, to provide remote control management
  • Inellgent temperature controlled fan, long life and low noise
  • Good load compatibility


SPECIFICATION


                     MODEL

    LX2K(L)

 LX3L(L)

 LX3.75/4K(L)

  LX5/6K(L)LX10K(L) LX10KS(L)LX15K(L)LX20K(L)

Capacity

2KVA

3KVA4KVA5/6KVA10KVA10KVA15KVA20KVA

INPUT

Voltage

220VAC±25%

Frequency

55Hz±10%/60Hz±10% Auto Sensing

OUTPUT

Voltage

220VAC±1%

Frequency50±0.5%/60Hz±0.5%(free running)
Dynamic ResponseFull Load±4%
Wave FormSine Wave
Crest Factor
3.1(for rectifier load)

Efficiency

>85%

Rated Output PF

0.8-1 LAG

Distortion THDNon Linear Load THD<5%; Linear Load THD<3%
Overload

<130% Transfer to Bypass and Recover Automaticly after 30s

130%-150% Transfer to Bypass and Recover Automaticly after 20s

BATTERY

Type

Valve Controlled Sealed Lead-acid Battery

DC Voltage

96VDC/192VDC

192VDC
Quantity for Standard Backup
12V/7Ah*8pcs/16pcs12V/12Ah*16pcs

Charging current

2.5A/5A( 10A optional)

TRANSFER TIME

Bypass Inverter

0ms

Inverter to bypass

<2ms

PROTECTION

Short Circuit

Shut Off Inverter and Bypass Output

Over Temperatrue

Transfer to Bypass Automaticly

EMI Filter10Hz-100kHz, 40dB/100k-100MHz, 70dB
Battery
Non-fuse Breaker
DISPLAY
LCDInput Voltage、Output Voltage、Current、Frequency、Battery Voltage、Load、UPS Status、Temperature etc.

ALARM

Battery Low Voltage

Continuely Alarm Every Second Until UPS Shut Down, Battery LED Flash LED Flash Every 2 Seconds

AC Fault
Alarm Every 2 Seconds, Stop after 90 seconds
UPS OverloadAlarm Continuely
UPS Fault
Alarm Continuely

COMMUNICATION INTERFACE

RS232

ENVIRONMENT

Temperature0°C-40°C
Humidity≤95%(no condensing)
Noise(at 1 meter)
<58dB
PHYSICAL
Weight(Net Weight)54Kg+18/36Kg58Kg+18/36Kg52Kg+36Kg54Kg+36Kg116Kg161kg127Kg213Kg
Dimension W*D*H(mm for UPS)
230*590*540(L)/270*590*750480*340*800480*540*860480*520*940480*620*1000






LX2-2OKVA transformar based series
2KVA-20KVA
1/1 phase
PF0.8
Transformar based
double conversion
online
